7mm Chain Offset Kit for CRAVE Swingarm

7mm Chain Offset Kit for CRAVE Advanced Swingarm for Surron Light Bee

The Surron Light Bee struggles to fit wide off-road tires without the chain rubbing against the tread — until now. Most chain offset kits only allow a 4mm shift, which is the maximum possible with the stock swingarm. Our unique 7mm offset is made possible by the combination of our swingarm’s revised geometry and this custom kit allowing most dirt tires to fit without rubbing, shaving knobs, or dishing the wheel.

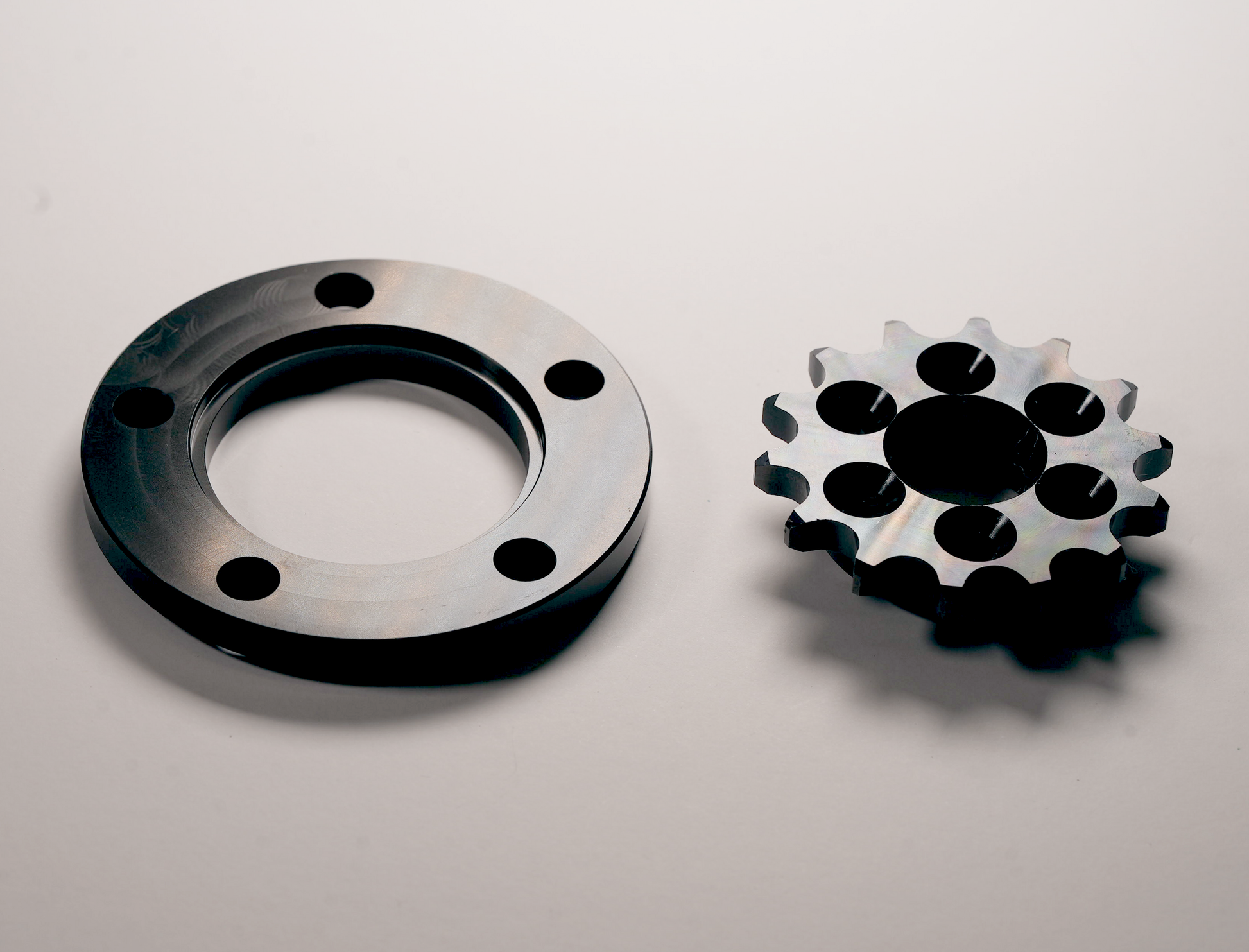

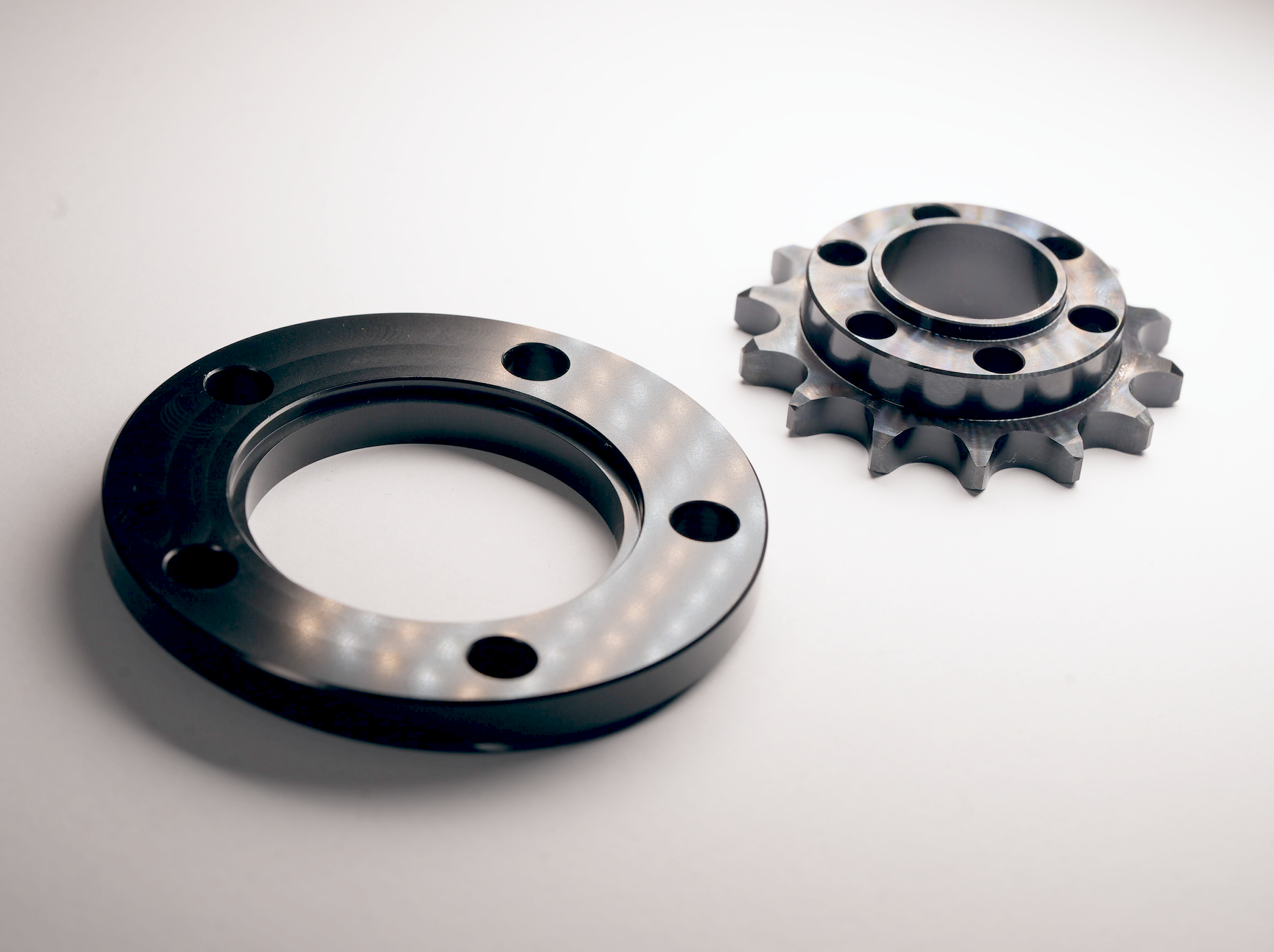

The kit includes a 4130 steel front sprocket with countersunk bolt holes for perfect centering on the jackshaft, and a rear sprocket spacer.

Compatibility Notes:
- This offset kit is designed for chains up to 16mm wide. It may be compatible with chains up to 17mm, but any width beyond 16mm risks contact with the swingarm wall. For optimal clearance and performance, we recommend using a chain no wider than 16mm.
- This offset kit includes special swingarm bearing adapters to achieve the wider chainline. These replace the standard adapters and disable the swingarm’s built-in jackshaft holding feature.
- The OEM jackshaft guard will not fit. We recommend replacing it with our Alloy Primary Chain/Belt Guard for proper primary chain/belt protection.
- This product can only be used with the CRAVE Advanced Swingarm for Surron Light Bee.
